Product Details
Brand: Beltwin

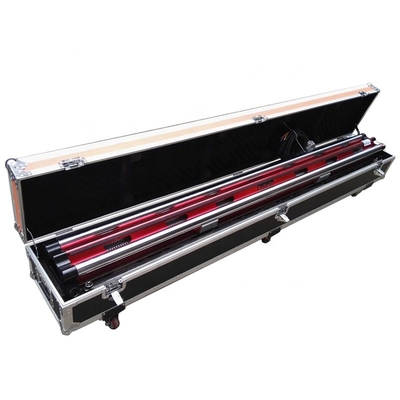

Item: Beltwin All in One Air Cooling Press
Feature: This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use. Fast and Portable Splicing, can bring to anywhere easily.
The PA series air cooled press, have different models for width from 24″ (300 mm) to 84″ (2100 mm)
New Type for 1800mm and 2100 width.
|
Model |
1800 |
2100 |
|
Effective length |
1829mm / 72″ |
2360mm / 92″ |
|
Effective width |
120mm / 4.7″ |
120mm / 4.7″ |
|
Weight lower part |
32kg |
36kg |
|
Weight upper part |
42kg |
55kg |
|
Total weight |
11kg |
134kg |
|
Overall height |
255mm |
255mm |
|
Max. pressure |
1Bar |
1Bar |
|
Max. temperature |
200 ℃/390℉ |
200 ℃/ 390 ℉ |
|
Packaging list (L x W x H) |
2330x460x550mm |
2567x352x310mm |
|
Gross weight |
160 kg |
225 kg |
