제품 설명
Products Description
Product Name
Edge Hydraulic Repair Vulcanizing Press Rubber Conveyor Belt Splicing Machine
Keywords
Belt-edge repair vulcanizing machine; Belt rubber conveyor belt hot splicing
Type
Rubber conveyor belt repair vulcanizer
Size(L*W*H mm)
1600*450*350

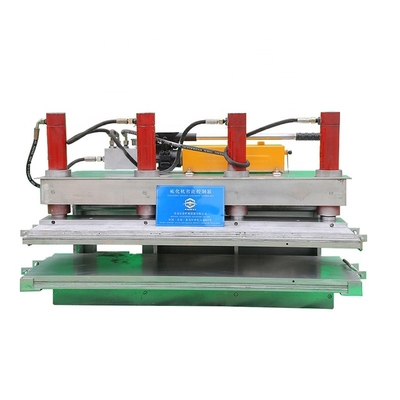

XL strip vulcanizing repair machine

XL strip vulcanizing repair machine ,also known as the belt-edge repair vulcanizing machine, is mainly applied to repair the long-distance damage ,longitudinal piercing as well as edge damages on the conveyor belt on site. It’s time-saving, efficient and easy operated.
Main Parts
Specification
Use Installation instructions：
1.Fill glue inthe damaged areas that need to be repaired(see the adhesive part in the vulcanization process of the belt joints, or the demonstration by our staff when the equipment is being tested);
2.Put the bottom plate, water pressure plate and lower heating plate under the damaged areasof the belt according to the structural diagram.
3.Put the upper heating plate,Insulation board on the damaged areasof the belt.Align the top and bottom plates.
4. Lockedequidistantlythen tighten the bolts.
5.Get the first power wire well connected to electric control box. Connect the second wire with electric control box and the upper and down plates.Note that it corresponds to the signon the electric control box.
6.Connect the end of the high pressure pipe with inlet opening of water pressure plate. And connect another end of the high-pressure pipe with water output hole of water pump.Switch on, add pressure upon vulcanizing machine.
(See the operation method of ATX electric control box).
The equipment can be customized as two type: oil pressure and water pressure.
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
